Basic Info.
Product Description

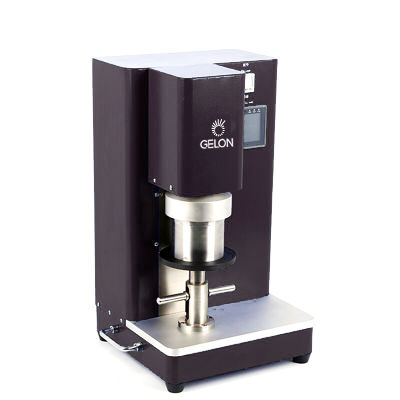

The planetary vacuum mixer can be applied to the mixing process of various solvents and powders, such as the raw material batching process of lithium ion batteries, tape, solar energy, and chemical industries. The equipment is beautiful in appearance, small size, convenient and easy to use. The speed of the motor is adjusted in the man-machine interface to drive the blades to rotate and stir the slurry evenly.
- Main Features
(1) The equipment is equipped with dual-shaft planetary ribbon stirring paddle and single-shaft blade stirring paddle, and different stirring shaft forms and combinations are configured according to the size of the stirring tank;
(2) The design of forward and reverse mixing function can realize high-speed mixing of higher viscosity slurry with good mixing uniformity;
(3) The vacuum environment can effectively eliminate the bubbles generated during the mixing process. The machine comes with a vacuum system;
(4) Multi-stage speed operation is possible, and the stirring speed and time of each stage can be set;
(5) The volume of the stirring tank is respectively 50ml, 150ml, 500ml optional, (can be customized according to requirements);
(6) The bracket design is convenient for operation and ensures the safety during the vacuum mixing process;
Mixing tank 50ml —Effective volume Max.30ml
Mixing tank 150ml — Effective volume Max.120ml
Mixing tank 500ml —Effective volume Max.400ml
(Can be customized according to customer needs)
| Power supply | AC 110/220V ±10% 50/60HZ | Size | 36*34*58cm |
| Power | 500W | Weight | About 60 kg l |
