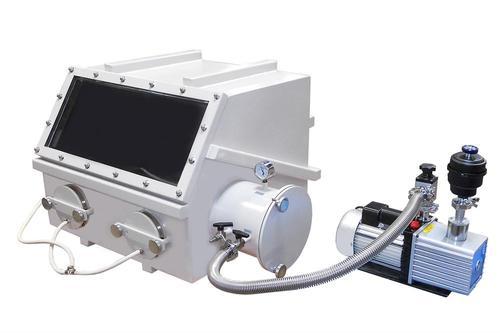

| Features | 1、Stainless Steel Vacuum Glove Box with Airlock chamber and gauges,transparent front panel make operation easy.
2、Material: 3mm thickness 304 stainless steel sheet with support frame, which provides heavy duty structure for vacuum. 3、Dimensions: 550mm(L) x 440mm(W) x 410mm(H). 4、Max. Positive Pressure: 810 Torr (1.1 atm) ² Note: Gloves cannot work if pressure is higher than 810 Torr 5、Max. Vacuum Level: 0.5 Torr ² Note: Stainless Steel case may deform at higher vacuum level ² Leakage Rate in GloveBox: < 6 Torr/hour 6、Air-lock Chamber： ² Dimensions: 200mm(ID) x 270mm(L) ² Max. Vacuum Level: 0.05 Torr |
||
| Vacuum pump and fittings (Optional) | |||
| Model | YD-VGB-A | YD-VGB-B | YD-VGB-C |
| Material | Stainless steel | Stainless steel | Stainless steel |
| Air Lock Size | ￠200 ×260 (L)mm | ￠240 ×260 (L)mm | ￠360 × 435 (L)mm |
| Main Chamber Size | 550W×440D×410Hmm | 780L×650W×700H mm | 1120W×740D×900H mm |
| Front Window Size | 500mm W x 165 mm H | 710mm W x 320 mm H | 1040mm W x 400mm H |
| Glove Box Gloves | Latex Glove (Standard) | ||
| Option | 1、 Butyl Gloves
2、 Pressure Controller 3、 Gas purification systems |
||
