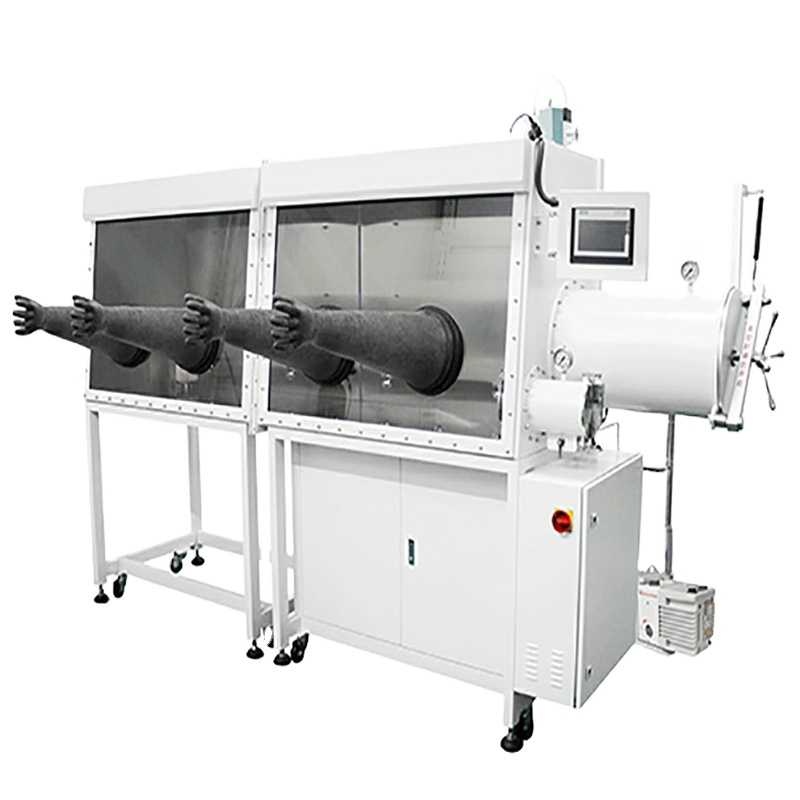

Product Description
Functions
1,Closed recirculation: Inert gas recirculate through circulating fan and purifier in the glove box,get rid of water and oxygen continuously.
2,automatic regeneration control:the materials used for getting rid of water and oxygen can be regenerated by program control.
3,automatic cleaning:The replacement of the gas in the glove box is controlled by cleaning valves.
4,The pressure in the box is controlled by PLC.It can be free set within +/-10mbar.If overtop +/-12mbar,automatic protection will start.
5,Vacuum pump will start automatically when the system required.
Specifications.
1,Glove box: single cooperation, stainless steel 304, size:1220(L)*750(W)*900(H)mm.Height of underframe is 900mm.
2,Main pipe:stainless steel,valves size DN40.
3,adapter module size: large one: Dia. 360mm,L600mm small one: Dia. 100mm,L300mm.
4,window:tempered glass,thickness 8mm
5,gloves: butyl rubber(imported,7B1532).Diameter of the gloves hole:200mm
6,circulating fan:flow90m3/h,frequency conversion
7, water analyzer :independent display panel;measurement range:0-2000ppm,imported from USA XENTAUR,XDT-PM
8,oxygen analyzer: independent display panel; measurement range:0-10ppm,0-100ppm,0-1000ppm,0-25%,high precision,no drifting,precision 1%
9,organic solvent absorber: installed on the behind,in parallel with main cycle pipe,can absorb the organic solvent first.
INDEX:
| Oxygen analyzer | Range 0-1000ppm | Water analyzer | Range 0-500ppm |
| Voltage input | AC220V/50HZ | Vacuum pump | Degree≤2×10-3pa |
| Size | 1220*800*1990mm | Weight | 650kg |
